World of GCP by Ketan Patel: Orchestrating the Cloud with Kubernetes

Task 1. Get the sample code

Copy the source code from the Cloud Shell command line:

gsutil cp -r gs://spls/gsp021/* .

cd orchestrate-with-kubernetes/kubernetes

student_04_1c515c556d93@cloudshell:~ (qwiklabs-gcp-03-ef6a7d727fd0)$ cd orchestrate-with-kubernetes/kubernetes

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ ls -l

total 24

-rw-r--r-- 1 student_04_1c515c556d93 student_04_1c515c556d93 283 Aug 1 22:06 cleanup.sh

drwxr-xr-x 2 student_04_1c515c556d93 student_04_1c515c556d93 4096 Aug 1 22:06 deployments

drwxr-xr-x 2 student_04_1c515c556d93 student_04_1c515c556d93 4096 Aug 1 22:06 nginx

drwxr-xr-x 2 student_04_1c515c556d93 student_04_1c515c556d93 4096 Aug 1 22:06 pods

drwxr-xr-x 2 student_04_1c515c556d93 student_04_1c515c556d93 4096 Aug 1 22:06 services

drwxr-xr-x 2 student_04_1c515c556d93 student_04_1c515c556d93 4096 Aug 1 22:06 tls

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ ls -l pods/

total 12

-rw-r--r-- 1 student_04_1c515c556d93 student_04_1c515c556d93 718 Aug 1 22:06 healthy-monolith.yaml

-rw-r--r-- 1 student_04_1c515c556d93 student_04_1c515c556d93 454 Aug 1 22:06 monolith.yaml

-rw-r--r-- 1 student_04_1c515c556d93 student_04_1c515c556d93 1262 Aug 1 22:06 secure-monolith.yaml

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ ls -l

total 24

-rw-r--r-- 1 student_04_1c515c556d93 student_04_1c515c556d93 283 Aug 1 22:06 cleanup.sh

drwxr-xr-x 2 student_04_1c515c556d93 student_04_1c515c556d93 4096 Aug 1 22:06 deployments

drwxr-xr-x 2 student_04_1c515c556d93 student_04_1c515c556d93 4096 Aug 1 22:06 nginx

drwxr-xr-x 2 student_04_1c515c556d93 student_04_1c515c556d93 4096 Aug 1 22:06 pods

drwxr-xr-x 2 student_04_1c515c556d93 student_04_1c515c556d93 4096 Aug 1 22:06 services

drwxr-xr-x 2 student_04_1c515c556d93 student_04_1c515c556d93 4096 Aug 1 22:06 tls

Task 2. Quick Kubernetes Demo

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl create deployment nginx --image=nginx:1.10.0

deployment.apps/nginx created

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl get pods

NAME READY STATUS RESTARTS AGE

nginx-79bb7d4b87-6nrqm 1/1 Running 0 11s

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl get svc

NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE

kubernetes ClusterIP 10.72.0.1 <none> 443/TCP 4m31s

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl expose deployment nginx --port 80 --type LoadBalancer

service/nginx exposed

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl get svc

NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE

kubernetes ClusterIP 10.72.0.1 <none> 443/TCP 4m39s

nginx LoadBalancer 10.72.14.139 <pending> 80:30113/TCP 4s

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl get svc

NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE

kubernetes ClusterIP 10.72.0.1 <none> 443/TCP 5m43s

nginx LoadBalancer 10.72.14.139 34.68.183.219 80:30113/TCP 68s

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ curl http://34.68.183.219:80

<!DOCTYPE html>

<html>

<head>

<title>Welcome to nginx!</title>

<style>

body {

width: 35em;

margin: 0 auto;

font-family: Tahoma, Verdana, Arial, sans-serif;

}

</style>

</head>

<body>

<h1>Welcome to nginx!</h1>

<p>If you see this page, the nginx web server is successfully installed and

working. Further configuration is required.</p>

<p>For online documentation and support please refer to

<a href="http://nginx.org/">nginx.org</a>.<br/>

Commercial support is available at

<a href="http://nginx.com/">nginx.com</a>.</p>

<p><em>Thank you for using nginx.</em></p>

</body>

</html>

Task 3. Pods

At the core of Kubernetes is the Pod.

Pods represent and hold a collection of one or more containers. Generally, if you have multiple containers with a hard dependency on each other, you package the containers inside a single pod.

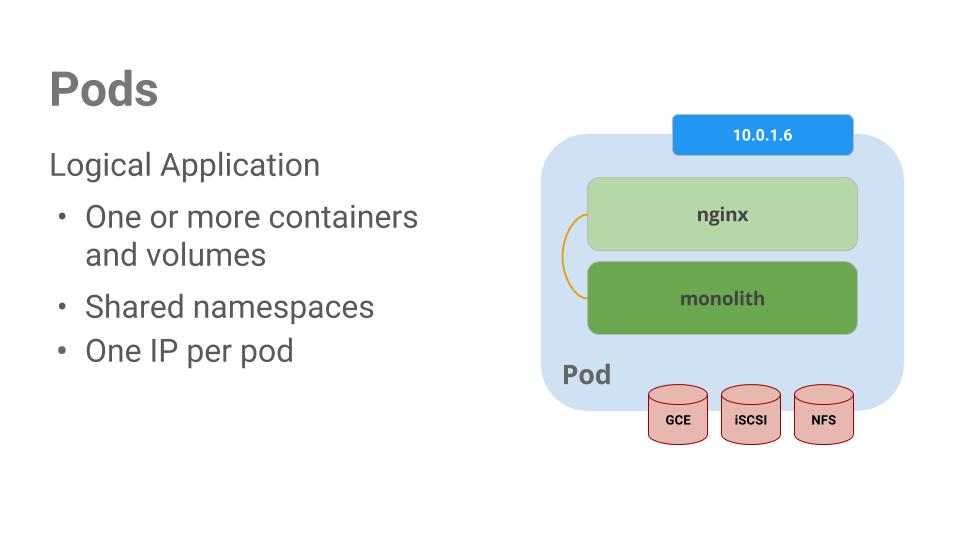

Pod containing the monolith and nginx containers

In this example there is a pod that contains the monolith and nginx containers.

Pods also have Volumes. Volumes are data disks that live as long as the pods live, and can be used by the containers in that pod. Pods provide a shared namespace for their contents which means that the two containers inside of our example pod can communicate with each other, and they also share the attached volumes.

Pods also share a network namespace. This means that there is one IP Address per pod.

Next, a deeper dive into pods.

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ cat pods/monolith.yaml

apiVersion: v1

kind: Pod

metadata:

labels:

app: monolith

spec:

containers:

- name: monolith

image: kelseyhightower/monolith:1.0.0

args:

- "-http=0.0.0.0:80"

- "-health=0.0.0.0:81"

- "-secret=secret"

ports:

- name: http

containerPort: 80

- name: health

containerPort: 81

resources:

limits:

cpu: 0.2

memory: "10Mi"

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl create -f pods/monolith.yaml

pod/monolith created

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl describe pods monolith

Name: monolith

Namespace: default

Priority: 0

Service Account: default

Node: gke-io-default-pool-04a8c07b-jdlw/10.128.0.3

Start Time: Tue, 01 Aug 2023 22:10:29 +0000

Labels: app=monolith

Annotations: <none>

Status: Running

IP: 10.68.0.8

IPs:

IP: 10.68.0.8

Containers:

monolith:

Container ID: containerd://aa34146da6ee526394b1ed295e5b8875e25d25b1913171c28a4b34fed655de25

Image: kelseyhightower/monolith:1.0.0

Image ID: sha256:980e09dd5c76f726e7369ac2c3aa9528fe3a8c92382b78e97aa54a4a32d3b187

Ports: 80/TCP, 81/TCP

Host Ports: 0/TCP, 0/TCP

Args:

-http=0.0.0.0:80

-health=0.0.0.0:81

-secret=secret

State: Running

Started: Tue, 01 Aug 2023 22:10:31 +0000

Ready: True

Restart Count: 0

Limits:

cpu: 200m

memory: 10Mi

Requests:

cpu: 200m

memory: 10Mi

Environment: <none>

Mounts:

/var/run/secrets/kubernetes.io/serviceaccount from kube-api-access-66b96 (ro)

Conditions:

Type Status

Initialized True

Ready True

ContainersReady True

PodScheduled True

Volumes:

kube-api-access-66b96:

Type: Projected (a volume that contains injected data from multiple sources)

TokenExpirationSeconds: 3607

ConfigMapName: kube-root-ca.crt

ConfigMapOptional: <nil>

DownwardAPI: true

QoS Class: Guaranteed

Node-Selectors: <none>

Tolerations: node.kubernetes.io/not-ready:NoExecute op=Exists for 300s

node.kubernetes.io/unreachable:NoExecute op=Exists for 300s

Events:

Type Reason Age From Message

---- ------ ---- ---- -------

Normal Scheduled 7s default-scheduler Successfully assigned default/monolith to gke-io-default-pool-04a8c07b-jdlw

Normal Pulling 7s kubelet Pulling image "kelseyhightower/monolith:1.0.0"

Normal Pulled 5s kubelet Successfully pulled image "kelseyhightower/monolith:1.0.0" in 1.669350381s (1.669382561s including waiting)

Normal Created 5s kubelet Created container monolith

Normal Started 5s kubelet Started container monolith

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ curl http://127.0.0.1:10080

{"message":"Hello"}

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ curl http://127.0.0.1:10080/secure

authorization failed

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ curl http://127.0.0.1:10080

{"message":"Hello"}

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ curl http://127.0.0.1:10080/secure

authorization failed

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ curl -u user http://127.0.0.1:10080/login

Enter host password for user 'user':

{"token":"eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJlbWFpbCI6InVzZXJAZXhhbXBsZS5jb20iLCJleHAiOjE2OTExODcxNzAsImlhdCI6MTY5MDkyNzk3MCwiaXNzIjoiYXV0aC5zZXJ2aWNlIiwic3ViIjoidXNlciJ9.-yvt-dX_gLg59w7ZlMiCrZ2CB2jIsttwT-dnlx7LiWE"}

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ TOKEN=$(curl http://127.0.0.1:10080/login -u user|jq -r '.token')

Enter host password for user 'user':

% Total % Received % Xferd Average Speed Time Time Time Current

Dload Upload Total Spent Left Speed

100 222 100 222 0 0 366 0 --:--:-- --:--:-- --:--:-- 366

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ echo $TOKEN

eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJlbWFpbCI6InVzZXJAZXhhbXBsZS5jb20iLCJleHAiOjE2OTExODcxOTcsImlhdCI6MTY5MDkyNzk5NywiaXNzIjoiYXV0aC5zZXJ2aWNlIiwic3ViIjoidXNlciJ9.ygLU2oEgi1z_sQDfytegdECaUUp1iVs44D-Pyk5z2KE

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ curl -H "Authorization: Bearer $TOKEN"

curl: no URL specified!

curl: try 'curl --help' or 'curl --manual' for more information

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ curl -H "Authorization: Bearer $TOKEN" http://127.0.0.1:10080/secure

{"message":"Hello"}

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl logs monolith

2023/08/01 22:10:31 Starting server...

2023/08/01 22:10:31 Health service listening on 0.0.0.0:81

2023/08/01 22:10:31 HTTP service listening on 0.0.0.0:80

127.0.0.1:48664 - - [Tue, 01 Aug 2023 22:10:57 UTC] "GET / HTTP/1.1" curl/7.74.0

127.0.0.1:45580 - - [Tue, 01 Aug 2023 22:12:17 UTC] "GET /secure HTTP/1.1" curl/7.74.0

127.0.0.1:38768 - - [Tue, 01 Aug 2023 22:12:28 UTC] "GET / HTTP/1.1" curl/7.74.0

127.0.0.1:38780 - - [Tue, 01 Aug 2023 22:12:30 UTC] "GET /secure HTTP/1.1" curl/7.74.0

127.0.0.1:51144 - - [Tue, 01 Aug 2023 22:12:50 UTC] "GET /login HTTP/1.1" curl/7.74.0

127.0.0.1:57472 - - [Tue, 01 Aug 2023 22:13:17 UTC] "GET /login HTTP/1.1" curl/7.74.0

127.0.0.1:45450 - - [Tue, 01 Aug 2023 22:13:50 UTC] "GET /secure HTTP/1.1" curl/7.74.0

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ curl http://127.0.0.1:10080

{"message":"Hello"}

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ curl http://127.0.0.1:10080

{"message":"Hello"}

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ curl http://127.0.0.1:10080

{"message":"Hello"}

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ -ef6a7d727fd0)$

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03^C

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl exec monolith --stdin --tty -c monolith -- /bin/sh

/ #

/ # ping -c 3 google.com

PING google.com (74.125.70.102): 56 data bytes

64 bytes from 74.125.70.102: seq=0 ttl=114 time=1.465 ms

64 bytes from 74.125.70.102: seq=1 ttl=114 time=1.104 ms

64 bytes from 74.125.70.102: seq=2 ttl=114 time=0.895 ms

--- google.com ping statistics ---

3 packets transmitted, 3 packets received, 0% packet loss

round-trip min/avg/max = 0.895/1.154/1.465 ms

/ # exit

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ cat pods/secure-monolith.yaml

apiVersion: v1

kind: Pod

metadata:

labels:

app: monolith

spec:

containers:

- name: nginx

image: "nginx:1.9.14"

lifecycle:

preStop:

exec:

command: ["/usr/sbin/nginx","-s","quit"]

volumeMounts:

- name: "nginx-proxy-conf"

mountPath: "/etc/nginx/conf.d"

- name: "tls-certs"

mountPath: "/etc/tls"

- name: monolith

image: "kelseyhightower/monolith:1.0.0"

ports:

- name: http

containerPort: 80

- name: health

containerPort: 81

resources:

limits:

cpu: 0.2

memory: "10Mi"

livenessProbe:

httpGet:

path: /healthz

port: 81

scheme: HTTP

initialDelaySeconds: 5

periodSeconds: 15

timeoutSeconds: 5

readinessProbe:

httpGet:

path: /readiness

port: 81

scheme: HTTP

initialDelaySeconds: 5

timeoutSeconds: 1

volumes:

- name: "tls-certs"

secret:

secretName: "tls-certs"

- name: "nginx-proxy-conf"

configMap:

items:

- key: "proxy.conf"

path: "proxy.conf"

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl create secret generic tls-certs --from-file tls/

kubectl create configmap nginx-proxy-conf --from-file nginx/proxy.conf

kubectl create -f pods/secure-monolith.yaml

secret/tls-certs created

configmap/nginx-proxy-conf created

pod/secure-monolith created

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ history 10

25 curl -H "Authorization: Bearer $TOKEN"

26 curl -H "Authorization: Bearer $TOKEN" http://127.0.0.1:10080/secure

27 kubectl logs monolith

28 curl http://127.0.0.1:10080

29 kubectl exec monolith --stdin --tty -c monolith -- /bin/sh

30 cat pods/secure-monolith.yaml

31 kubectl create secret generic tls-certs --from-file tls/

32 kubectl create configmap nginx-proxy-conf --from-file nginx/proxy.conf

33 kubectl create -f pods/secure-monolith.yaml

34 history 10

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl get pods

NAME READY STATUS RESTARTS AGE

monolith 1/1 Running 0 9m51s

nginx-79bb7d4b87-6nrqm 1/1 Running 0 12m

secure-monolith 2/2 Running 0 25s

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ ls -l

total 24

-rw-r--r-- 1 student_04_1c515c556d93 student_04_1c515c556d93 283 Aug 1 22:06 cleanup.sh

drwxr-xr-x 2 student_04_1c515c556d93 student_04_1c515c556d93 4096 Aug 1 22:06 deployments

drwxr-xr-x 2 student_04_1c515c556d93 student_04_1c515c556d93 4096 Aug 1 22:06 nginx

drwxr-xr-x 2 student_04_1c515c556d93 student_04_1c515c556d93 4096 Aug 1 22:06 pods

drwxr-xr-x 2 student_04_1c515c556d93 student_04_1c515c556d93 4096 Aug 1 22:06 services

drwxr-xr-x 2 student_04_1c515c556d93 student_04_1c515c556d93 4096 Aug 1 22:06 tls

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ cd pods

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes/pods (qwiklabs-gcp-03-ef6a7d727fd0)$ ls

healthy-monolith.yaml monolith.yaml secure-monolith.yaml

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes/pods (qwiklabs-gcp-03-ef6a7d727fd0)$

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes/pods (qwiklabs-gcp-03-ef6a7d727fd0)$ cat services/monolith.yaml

cat: services/monolith.yaml: No such file or directory

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes/pods (qwiklabs-gcp-03-ef6a7d727fd0)$ cd ..

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ cat services/monolith.yaml

kind: Service

apiVersion: v1

metadata:

spec:

selector:

app: "monolith"

secure: "enabled"

ports:

- protocol: "TCP"

port: 443

targetPort: 443

nodePort: 31000

type: NodePort

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ ls

cleanup.sh deployments nginx pods services tls

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl create -f services/monolith.yaml

service/monolith created

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl get pods

NAME READY STATUS RESTARTS AGE

monolith 1/1 Running 0 11m

nginx-79bb7d4b87-6nrqm 1/1 Running 0 14m

secure-monolith 2/2 Running 0 2m31s

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl get pods -o wide

NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES

monolith 1/1 Running 0 12m 10.68.0.8 gke-io-default-pool-04a8c07b-jdlw <none> <none>

nginx-79bb7d4b87-6nrqm 1/1 Running 0 14m 10.68.0.7 gke-io-default-pool-04a8c07b-jdlw <none> <none>

secure-monolith 2/2 Running 0 2m37s 10.68.2.6 gke-io-default-pool-04a8c07b-sw9t <none> <none>

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl get svc

NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE

kubernetes ClusterIP 10.72.0.1 <none> 443/TCP 19m

monolith NodePort 10.72.15.184 <none> 443:31000/TCP 20s

nginx LoadBalancer 10.72.14.139 34.68.183.219 80:30113/TCP 14m

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl get svc -o wide

NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE SELECTOR

kubernetes ClusterIP 10.72.0.1 <none> 443/TCP 19m <none>

monolith NodePort 10.72.15.184 <none> 443:31000/TCP 24s app=monolith,secure=enabled

nginx LoadBalancer 10.72.14.139 34.68.183.219 80:30113/TCP 14m app=nginx

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ gcloud compute firewall-rules create allow-monolith-nodeport \

--allow=tcp:31000

Creating firewall...working..Created [https://www.googleapis.com/compute/v1/projects/qwiklabs-gcp-03-ef6a7d727fd0/global/firewalls/allow-monolith-nodeport].

Creating firewall...done.

NAME: allow-monolith-nodeport

NETWORK: default

DIRECTION: INGRESS

PRIORITY: 1000

ALLOW: tcp:31000

DENY:

DISABLED: False

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ gcloud compute instances list

NAME: gke-io-default-pool-04a8c07b-jdlw

ZONE: us-central1-b

MACHINE_TYPE: e2-medium

PREEMPTIBLE:

INTERNAL_IP: 10.128.0.3

EXTERNAL_IP: 34.133.126.70

STATUS: RUNNING

NAME: gke-io-default-pool-04a8c07b-sw9t

ZONE: us-central1-b

MACHINE_TYPE: e2-medium

PREEMPTIBLE:

INTERNAL_IP: 10.128.0.5

EXTERNAL_IP: 104.198.214.27

STATUS: RUNNING

NAME: gke-io-default-pool-04a8c07b-z3d9

ZONE: us-central1-b

MACHINE_TYPE: e2-medium

PREEMPTIBLE:

INTERNAL_IP: 10.128.0.4

EXTERNAL_IP: 34.29.11.85

STATUS: RUNNING

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl get svc

NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE

kubernetes ClusterIP 10.72.0.1 <none> 443/TCP 29m

monolith NodePort 10.72.15.184 <none> 443:31000/TCP 10m

nginx LoadBalancer 10.72.14.139 34.68.183.219 80:30113/TCP 24m

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ curl -k https://10.72.15.184:31000

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl get svc

NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE

kubernetes ClusterIP 10.72.0.1 <none> 443/TCP 32m

monolith NodePort 10.72.15.184 <none> 443:31000/TCP 13m

nginx LoadBalancer 10.72.14.139 34.68.183.219 80:30113/TCP 27m

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl describe service monolith

Name: monolith

Namespace: default

Labels: <none>

Annotations: cloud.google.com/neg: {"ingress":true}

Selector: app=monolith,secure=enabled

Type: NodePort

IP Family Policy: SingleStack

IP Families: IPv4

IP: 10.72.15.184

IPs: 10.72.15.184

Port: <unset> 443/TCP

TargetPort: 443/TCP

NodePort: <unset> 31000/TCP

Endpoints: <none>

Session Affinity: None

External Traffic Policy: Cluster

Events: <none>

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl get pods

NAME READY STATUS RESTARTS AGE

monolith 1/1 Running 0 26m

nginx-79bb7d4b87-6nrqm 1/1 Running 0 28m

secure-monolith 2/2 Running 0 16m

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl get pods -o wide

NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES

monolith 1/1 Running 0 26m 10.68.0.8 gke-io-default-pool-04a8c07b-jdlw <none> <none>

nginx-79bb7d4b87-6nrqm 1/1 Running 0 28m 10.68.0.7 gke-io-default-pool-04a8c07b-jdlw <none> <none>

secure-monolith 2/2 Running 0 16m 10.68.2.6 gke-io-default-pool-04a8c07b-sw9t <none> <none>

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl get svc -o wide

NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE SELECTOR

kubernetes ClusterIP 10.72.0.1 <none> 443/TCP 33m <none>

monolith NodePort 10.72.15.184 <none> 443:31000/TCP 14m app=monolith,secure=enabled

nginx LoadBalancer 10.72.14.139 34.68.183.219 80:30113/TCP 28m app=nginx

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl get pods -l "app=monolith"

NAME READY STATUS RESTARTS AGE

monolith 1/1 Running 0 27m

secure-monolith 2/2 Running 0 18m

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$

secure-monolith 2/2 Running 0 18m

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$

-bash: secure-monolith: command not found

-bash: syntax error near unexpected token `qwiklabs-gcp-03-ef6a7d727fd0'

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl get pods -l "app=monolith,secure=enabled"

No resources found in default namespace.

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl label pods secure-monolith 'secure=enabled'

kubectl get pods secure-monolith --show-labels

pod/secure-monolith labeled

NAME READY STATUS RESTARTS AGE LABELS

secure-monolith 2/2 Running 0 18m app=monolith,secure=enabled

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl get pods -l "app=monolith"

NAME READY STATUS RESTARTS AGE

monolith 1/1 Running 0 28m

secure-monolith 2/2 Running 0 19m

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl get pods

NAME READY STATUS RESTARTS AGE

monolith 1/1 Running 0 28m

nginx-79bb7d4b87-6nrqm 1/1 Running 0 31m

secure-monolith 2/2 Running 0 19m

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl describe services monolith | grep Endpoints

Endpoints: 10.68.2.6:443

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ gcloud compute instances list

curl -k https://10.68.2.6:31000

NAME: gke-io-default-pool-04a8c07b-jdlw

ZONE: us-central1-b

MACHINE_TYPE: e2-medium

PREEMPTIBLE:

INTERNAL_IP: 10.128.0.3

EXTERNAL_IP: 34.133.126.70

STATUS: RUNNING

NAME: gke-io-default-pool-04a8c07b-sw9t

ZONE: us-central1-b

MACHINE_TYPE: e2-medium

PREEMPTIBLE:

INTERNAL_IP: 10.128.0.5

EXTERNAL_IP: 104.198.214.27

STATUS: RUNNING

NAME: gke-io-default-pool-04a8c07b-z3d9

ZONE: us-central1-b

MACHINE_TYPE: e2-medium

PREEMPTIBLE:

INTERNAL_IP: 10.128.0.4

EXTERNAL_IP: 34.29.11.85

STATUS: RUNNING

Task 9. Deploying applications with Kubernetes

The goal of this lab is to get you ready for scaling and managing containers in production. That's where Deployments come in. Deployments are a declarative way to ensure that the number of Pods running is equal to the desired number of Pods, specified by the user.

Deployments diagram includes nodes one, two, and three. app: hello. replicas: 3 The main benefit of Deployments is in abstracting away the low level details of managing Pods. Behind the scenes Deployments use Replica Sets to manage starting and stopping the Pods. If Pods need to be updated or scaled, the Deployment will handle that. Deployment also handles restarting Pods if they happen to go down for some reason.

Look at a quick example:

Deployments diagram

Pods are tied to the lifetime of the Node they are created on. In the example above, Node3 went down (taking a Pod with it). Instead of manually creating a new Pod and finding a Node for it, your Deployment created a new Pod and started it on Node2.

That's pretty cool!

It's time to combine everything you learned about Pods and Services to break up the monolith application into smaller Services using Deployments.

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ cat deployments/auth.yaml

apiVersion: apps/v1

kind: Deployment

metadata:

spec:

selector:

matchLabels:

app: auth

replicas: 1

template:

metadata:

labels:

app: auth

track: stable

spec:

containers:

- name: auth

image: "kelseyhightower/auth:2.0.0"

ports:

- name: http

containerPort: 80

- name: health

containerPort: 81

resources:

limits:

cpu: 0.2

memory: "10Mi"

livenessProbe:

httpGet:

path: /healthz

port: 81

scheme: HTTP

initialDelaySeconds: 5

periodSeconds: 15

timeoutSeconds: 5

readinessProbe:

httpGet:

path: /readiness

port: 81

scheme: HTTP

initialDelaySeconds: 5

timeoutSeconds: 1

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl create -f deployments/auth.yaml

deployment.apps/auth created

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl get deployments

NAME READY UP-TO-DATE AVAILABLE AGE

auth 1/1 1 1 15s

nginx 1/1 1 1 35m

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl get pods

NAME READY STATUS RESTARTS AGE

auth-8dcc5fdf8-rq52j 1/1 Running 0 20s

monolith 1/1 Running 0 32m

nginx-79bb7d4b87-6nrqm 1/1 Running 0 35m

secure-monolith 2/2 Running 0 22m

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl get svcs

error: the server doesn't have a resource type "svcs"

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl get svc

NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE

kubernetes ClusterIP 10.72.0.1 <none> 443/TCP 39m

monolith NodePort 10.72.15.184 <none> 443:31000/TCP 20m

nginx LoadBalancer 10.72.14.139 34.68.183.219 80:30113/TCP 34m

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl create -f services/auth.yaml

service/auth created

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl get svc

NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE

auth ClusterIP 10.72.6.13 <none> 80/TCP 3s

kubernetes ClusterIP 10.72.0.1 <none> 443/TCP 39m

monolith NodePort 10.72.15.184 <none> 443:31000/TCP 20m

nginx LoadBalancer 10.72.14.139 34.68.183.219 80:30113/TCP 35m

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl create -f deployments/hello.yaml

kubectl create -f services/hello.yaml

deployment.apps/hello created

service/hello created

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl get pods

NAME READY STATUS RESTARTS AGE

auth-8dcc5fdf8-rq52j 1/1 Running 0 67s

hello-64fc59fc76-4b5gj 0/1 Running 0 10s

hello-64fc59fc76-nnrrn 0/1 Running 0 10s

hello-64fc59fc76-tbgtb 0/1 Running 0 10s

monolith 1/1 Running 0 33m

nginx-79bb7d4b87-6nrqm 1/1 Running 0 35m

secure-monolith 2/2 Running 0 23m

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl get deployments

NAME READY UP-TO-DATE AVAILABLE AGE

auth 1/1 1 1 76s

hello 3/3 3 3 18s

nginx 1/1 1 1 36m

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl get svc

NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE

auth ClusterIP 10.72.6.13 <none> 80/TCP 42s

hello ClusterIP 10.72.9.114 <none> 80/TCP 19s

kubernetes ClusterIP 10.72.0.1 <none> 443/TCP 40m

monolith NodePort 10.72.15.184 <none> 443:31000/TCP 21m

nginx LoadBalancer 10.72.14.139 34.68.183.219 80:30113/TCP 35m

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl create configmap nginx-frontend-conf --from-file=nginx/frontend.conf

kubectl create -f deployments/frontend.yaml

kubectl create -f services/frontend.yaml

configmap/nginx-frontend-conf created

deployment.apps/frontend created

service/frontend created

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-gcp-03-ef6a7d727fd0)$ kubectl get deployments

NAME READY UP-TO-DATE AVAILABLE AGE

auth 1/1 1 1 104s

frontend 0/1 1 0 6s

hello 3/3 3 3 46s

nginx 1/1 1 1 36m

student_04_1c515c556d93@cloudshell:~/orchestrate-with-kubernetes/kubernetes (qwiklabs-g

World of GCP by Ketan Patel

Orchestrating the Cloud with Kubernetes

Task 2. Quick Kubernetes Demo

Task 3. Pods

Task 9. Deploying applications with Kubernetes

No comments:

Post a Comment

AppEngine - Python

Report Abuse

Labels
